import warnings
warnings.filterwarnings(action='once')
from panel_segmentation import utils
import glob
import matplotlib.pyplot as plt
from PIL import Image
from scipy.ndimage import shift
from kornia.geometry import ImageRegistrator
from scipy import signal
from mmengine import Config
from mmdet.apis import init_detector, inference_detector
import mmcv
from mmdet.registry import VISUALIZERS
import numpy as np
import os
import cv2
import torch
import torch.nn.functional as F
import kornia

C:\Users\kperry\.conda\envs\deep-learning\Lib\site-packages\dash\_jupyter.py:30: DeprecationWarning: The `ipykernel.comm.Comm` class has been deprecated. Please use the `comm` module instead.For creating comms, use the function `from comm import create_comm`.
  _dash_comm = Comm(target_name="dash")

Jupyter environment detected. Enabling Open3D WebVisualizer.
[Open3D INFO] WebRTC GUI backend enabled.
[Open3D INFO] WebRTCWindowSystem: HTTP handshake server disabled.

C:\Users\kperry\.conda\envs\deep-learning\Lib\site-packages\geopandas\_compat.py:7: DeprecationWarning: The 'shapely.geos' module is deprecated, and will be removed in a future version. All attributes of 'shapely.geos' are available directly from the top-level 'shapely' namespace (since shapely 2.0.0).
  import shapely.geos
C:\Users\kperry\.conda\envs\deep-learning\Lib\site-packages\mmengine\optim\optimizer\zero_optimizer.py:11: DeprecationWarning: `TorchScript` support for functional optimizers is deprecated and will be removed in a future PyTorch release. Consider using the `torch.compile` optimizer instead.
  from torch.distributed.optim import \

# Additional functions for running process
def mask_to_np(img, masks, labels):
    """
    Convert a mask to numpy array
    """
    mask_array = np.zeros((img.shape[0], img.shape[1]))
    for idx in range(len(masks)):
        ann = masks[idx]
        label = int(labels[idx]) +1
        mask_array = np.maximum(mask_array, ann.detach().numpy().astype(int) * label)
    return mask_array

Hurricane Damage Detection

The following example uses the hurricane damage detection pipeline to detect hurricane damage on solar installations given a satellite imagery. First, let’s pull some example images down from the hurricane data examples folder. This data is taken from the NOAA scan post-Hurricane Maria.

example_pre_hurricane_images = glob.glob(
    "../../../panel_segmentation/examples/puerto_rico_pre_hurricane_images/*.png")

Let’s load in the pre- and post-hurricane models to run inference on.

# Read in pre-storm model
cfg = Config.fromfile("../../../panel_segmentation/models/pre_hurricane_config.py")
checkpoint_file = "../../../panel_segmentation/models/pre_hurricane_model.pth"
pre_model = init_detector(cfg, device='cpu')
checkpoint = torch.load(checkpoint_file, map_location='cpu', weights_only=False)
pre_model.load_state_dict(checkpoint['state_dict'])

# Read in post-storm model
cfg = Config.fromfile("../../../panel_segmentation/models/post_hurricane_config.py")
checkpoint_file = "../../../panel_segmentation/models/post_hurricane_model.pth"
post_model = init_detector(cfg, device='cpu')
checkpoint = torch.load(checkpoint_file, map_location='cpu', weights_only=False)
post_model.load_state_dict(checkpoint['state_dict'])
# Build visualizer for post-storm model
visualizer = VISUALIZERS.build(post_model.cfg.visualizer)

C:\Users\kperry\.conda\envs\deep-learning\Lib\site-packages\mmcv\cnn\bricks\transformer.py:24: ImportWarning: ``MultiScaleDeformableAttention`` has been moved to ``mmcv.ops.multi_scale_deform_attn``, please change original path ``from mmcv.cnn.bricks.transformer import MultiScaleDeformableAttention`` to ``from mmcv.ops.multi_scale_deform_attn import MultiScaleDeformableAttention``
  warnings.warn(
C:\Users\kperry\.conda\envs\deep-learning\Lib\site-packages\mmdet\apis\inference.py:70: UserWarning: checkpoint is None, use COCO classes by default.
  warnings.warn('checkpoint is None, use COCO classes by default.')
C:\Users\kperry\.conda\envs\deep-learning\Lib\site-packages\mmdet\apis\inference.py:70: UserWarning: checkpoint is None, use COCO classes by default.
  warnings.warn('checkpoint is None, use COCO classes by default.')

Run the example images through both models, and calculate the level hurricane damage.

for image in example_pre_hurricane_images:
    pre_img = mmcv.imread(image, channel_order='rgb')
    pre_result = inference_detector(pre_model, pre_img)
    pre_predictions = pre_result._pred_instances
    pre_masks, pre_labels, pre_scores = pre_predictions.masks, pre_predictions.labels, pre_predictions.scores
    # Cutoff any of the scores under threshold
    idx_to_keep = np.argwhere(pre_scores>=0.5).tolist()[0]
    pre_masks, pre_labels = pre_masks[idx_to_keep], pre_labels[idx_to_keep]
    # Run inference on the corresponding post-storm image
    destruction_img = os.path.join(
        "../../../panel_segmentation/examples/puerto_rico_post_hurricane_images",
        os.path.basename(image))
    post_img = mmcv.imread(destruction_img, channel_order='rgb')
    post_result = inference_detector(post_model,  post_img)
    post_predictions = post_result._pred_instances
    post_masks, post_labels, post_scores= post_predictions.masks, post_predictions.labels, post_predictions.scores
    idx_to_keep = np.argwhere(post_scores>=0.5).tolist()[0]
    post_masks, post_labels = post_masks[idx_to_keep], post_labels[idx_to_keep]
    # Convert mask to image
    # Pre-storm mask
    pre_anns_img = mask_to_np(pre_img, pre_masks, pre_labels)
    post_anns_img = mask_to_np(post_img, post_masks, post_labels)
    # Post-correction in case pre- and post- images are not the same size
    post_anns_img = cv2.resize(post_anns_img, dsize=(pre_img.shape[0], pre_img.shape[1]),
                                interpolation=cv2.INTER_CUBIC)
    # Perform 2-D cross-correlation on the pre-storm mask to align it with the
    # post-storm mask (via FFT)
    cross_corr = signal.correlate(post_anns_img, pre_anns_img, mode='same', method='fft')
    # Shift the image based on highest cross-correlation value
    new_center = np.unravel_index(cross_corr.argmax(), cross_corr.shape)
    translation_x, translation_y = new_center[1]-pre_anns_img.shape[0]/2, new_center[0]-pre_anns_img.shape[1]/2
    pre_anns_img = shift(pre_anns_img, [translation_y, translation_x], cval=0)
    pre_anns_img = np.round(pre_anns_img[:pre_anns_img.shape[0], :pre_anns_img.shape[1]])
    # Convert to tensor to run Image Registration
    pre_anns_tensor = torch.from_numpy(np.array(
        pre_anns_img.reshape(1,1,pre_anns_img.shape[0],
                             pre_anns_img.shape[1])).astype(np.float32))
    post_anns_tensor = torch.from_numpy(np.array(
        post_anns_img.reshape(1,1,post_anns_img.shape[0],
                              post_anns_img.shape[1])).astype(np.float32))
    # Registration against the two masks
    registrator = ImageRegistrator('similarity',
                                    tolerance=.001, loss_fn=F.mse_loss)
    model = registrator.register(pre_anns_tensor, post_anns_tensor)
    aligned_mask = registrator.warp_src_into_dst(pre_anns_tensor)
    # Align the image as well
    aligned_no_damage_img = registrator.warp_src_into_dst(pre_anns_tensor)

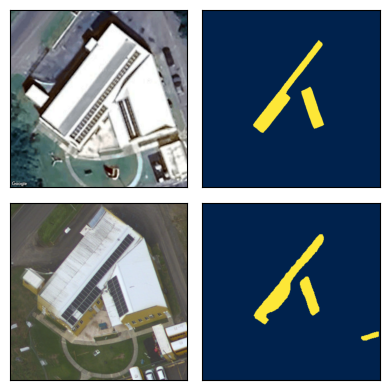

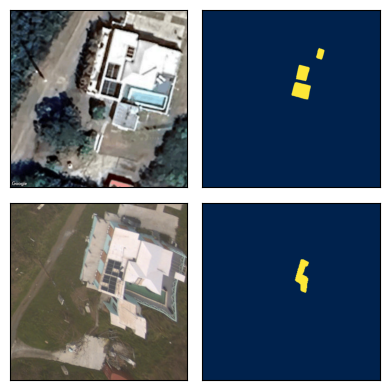

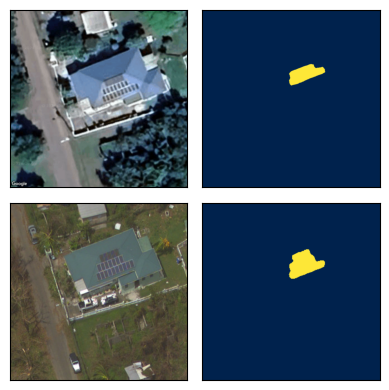

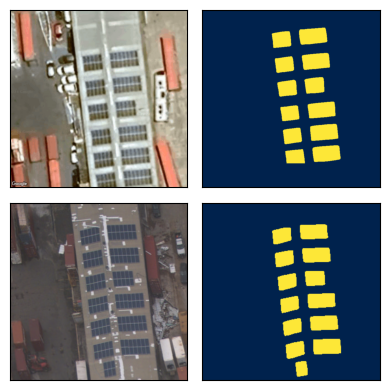

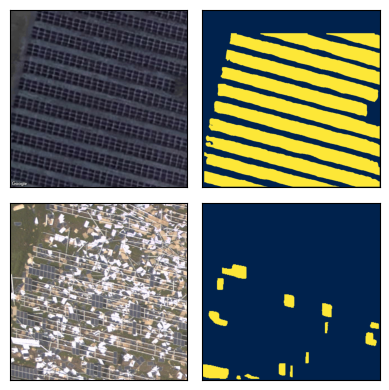

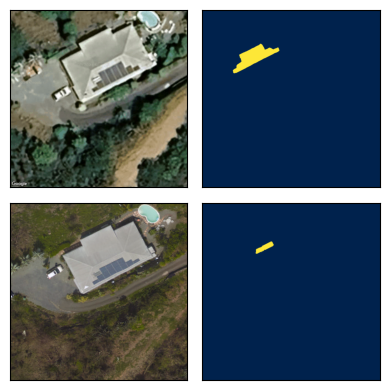

    # Plot results
    print(image)
    fig, axs = plt.subplots(2, 2, figsize=(4,4))
    axs = axs.flatten()
    axs[0].imshow(pre_img)
    axs[1].imshow(
            np.round(kornia.tensor_to_image(aligned_mask[0].sum(dim=0, keepdim=True))),
            cmap=plt.get_cmap('cividis'),
        )
    axs[2].imshow(post_img)
    axs[3].imshow(
            np.round(kornia.tensor_to_image(post_anns_tensor[0].sum(dim=0, keepdim=True))),
            cmap=plt.get_cmap('cividis'),
        )
    plt.setp(plt.gcf().get_axes(), xticks=[], yticks=[]);
    fig.tight_layout()
    plt.show()
    plt.close()

C:\Users\kperry\.conda\envs\deep-learning\Lib\site-packages\mmdet\models\layers\se_layer.py:158: FutureWarning: `torch.cuda.amp.autocast(args...)` is deprecated. Please use `torch.amp.autocast('cuda', args...)` instead.
  with torch.cuda.amp.autocast(enabled=False):
C:\Users\kperry\.conda\envs\deep-learning\Lib\site-packages\mmdet\models\backbones\csp_darknet.py:118: FutureWarning: `torch.cuda.amp.autocast(args...)` is deprecated. Please use `torch.amp.autocast('cuda', args...)` instead.
  with torch.cuda.amp.autocast(enabled=False):
C:\Users\kperry\.conda\envs\deep-learning\Lib\site-packages\torch\functional.py:534: UserWarning: torch.meshgrid: in an upcoming release, it will be required to pass the indexing argument. (Triggered internally at C:\cb\pytorch_1000000000000\work\aten\src\ATen\native\TensorShape.cpp:3596.)
  return _VF.meshgrid(tensors, **kwargs)  # type: ignore[attr-defined]
C:\Users\kperry\.conda\envs\deep-learning\Lib\site-packages\numpy\_core\fromnumeric.py:45: DeprecationWarning: __array_wrap__ must accept context and return_scalar arguments (positionally) in the future. (Deprecated NumPy 2.0)
  return conv.wrap(result, to_scalar=False)

../../../panel_segmentation/examples/puerto_rico_pre_hurricane_images\20170922aC0645700w182100n_18.33663412854537_-64.94846397928669.png

../../../panel_segmentation/examples/puerto_rico_pre_hurricane_images\20170923aC0643730w174630n_17.755921683652495_-64.61565564054749.png

../../../panel_segmentation/examples/puerto_rico_pre_hurricane_images\20170923bC0644630w174630n_17.753614194913194_-64.76843834010256.png

../../../panel_segmentation/examples/puerto_rico_pre_hurricane_images\20170923bC0644630w174630n_17.77098719486288_-64.76338464575298.png

../../../panel_segmentation/examples/puerto_rico_pre_hurricane_images\20170923bC0644800w174630n_17.752847839809693_-64.77722415663133.png

../../../panel_segmentation/examples/puerto_rico_pre_hurricane_images\20170924aC0654800w180900n_18.130325377062075_-65.78995277940152.png
